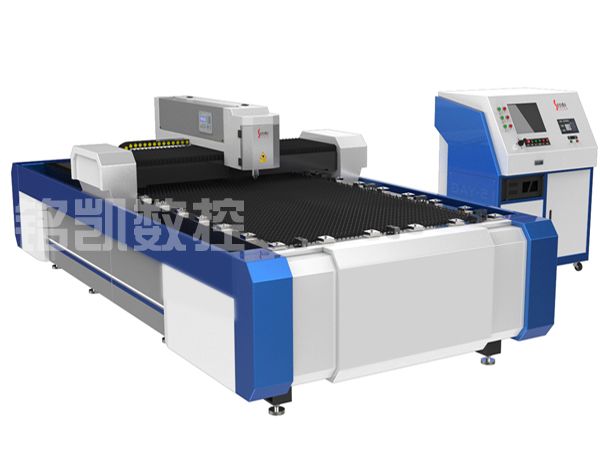

X，Y axis adopt square rail and ball screw transmission to make machine more stable,higher accuracy.
Stable and full equipped design concept,equipped with advanced industrial cooling system,with anhydrous alarm automatic protection system,improve the stability and safety of continuous work.
Full-equipped dust,anti-pollution exhaust system,more attention to environmental protection.
Applications
‖Advertising Industry:Acrylic,double color board ＆ other advertising material engraving ＆ cutting.
‖Leather Industry:Engraving ＆ through-carving on leather ＆ cloth.
‖ Craft Industry:Engrave and cut on paper,wooden material,bamboo,leather,seashell ＆ ivory material.
‖Model Industry:Cutting for architectural model,Aviation and navigation model,wooden toy.
‖Packaging Industry:Engrave ＆ cut on rubber,composite board ＆ Laser die board.
‖Engrave ＆ cut in decoration industry ＆ electronic appliance industry materials.
Parameters
| 產品型號 Laser model |
MK-1318 MK-1325 MK-1625 |
| 激光類型Laser Type |
co2封閉式玻璃管激光器波10.6μm，Glass Sealed-off co2 laser tube,wavelength 10.6μm |
| 激光管功率Laser Power |
40W 60W 80W 100W 150W |
| 冷卻方式Laser Tube Cooling |
水冷 Purified Recycling Water Cooling |
| 能量調節Laser Output Control |
0-100％無段控制，軟件內部0-100％可調 Non Section Control,Software inner adjustment from0-100％ |
| 控制及驅動Control System and Driver |
DSP控制 步進電機驅動DSP Control,High Subdivision Driver,Stepper Motor |
| 雕刻速度Engraving Speed |
0-1200mm/s |
| 切割速度Cutting Speed |
0-600mm/s |
| 工作電壓Working Voltage |
AC220v/110V±10％ 50HZ/60HZ |
| 定位精度Position Accuracy |
≤±0.01mm |
| 最小成型字Minimum Letter Size |
漢子1.5mm 英文字母1mm Chinese:1.5mm English:1mm |
| 整機功率Machine Power |
≤1000W |
| 加工幅面Working Area |
1300mm×1800mm 1300mm×2500mm 1600mm×2500mm |
| 工作臺升降Rise and Fall Height |
手動調整（adjusted manually）100mm |
| 工作環境working Environment |
溫度：0-45℃ 濕度：5％-95％ （無凝水）Temperature:0-45℃ Humidity:5％-95％ |
| 軟件支持格式Supported Format |
PLT、DST 、DXF、BMP 、AI可支持（Support）AutoCAD、CorelDraw直接輸出（、output directly）
|
